By converting 2x MCIO X8 through the PCIe Gen5X16 slot on the PC. At the same time, two MCIO X8 data cables are added to connect up to four U.2 NVMe SSDS.
Connector1: 1 x PCIe Gen5 x16
Connector2: 2 x MCIO X8
Data transfer rate: 32 GT/s (PCIe Gen5)

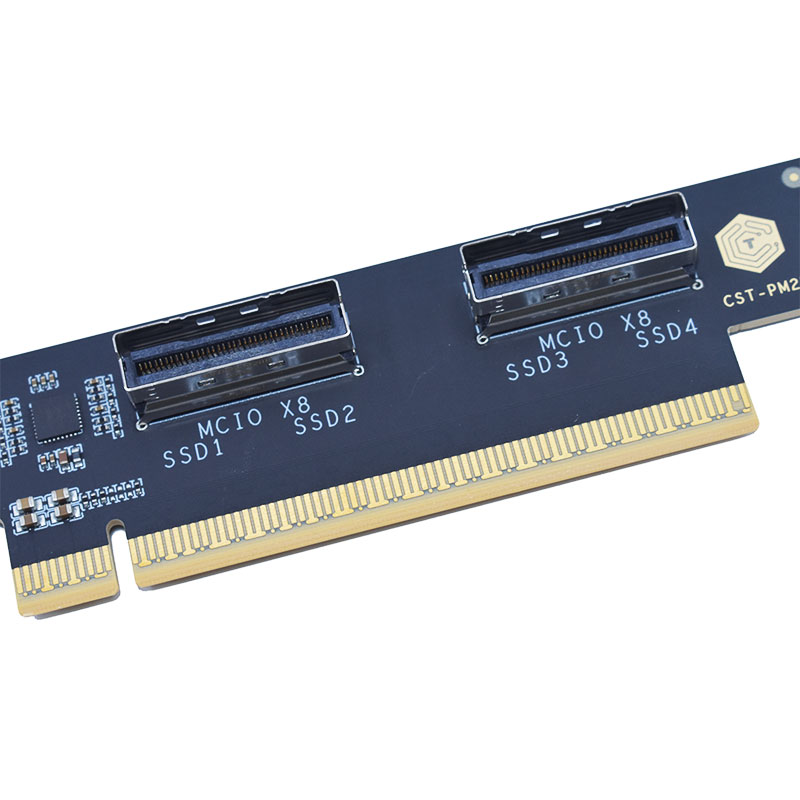

Built-in two MCIO X8 connector
Support for PCI Express basic specification 5.0, backward compatible with 4.0 and 3.0
Supports NVM Express (NVMe)
Bootable, ex UEFI version 2.3.1
Operating temperature: -40℃ - 85℃
System requirements:
Linux Kernel 5.11 or above
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2019
PC with one free PCI Express x8 / x16 slot
Motherboard and BIOS with PCIe bifurcation support
Note: You need to set up signal splitting on the motherboard BIOS (x4x4x4x4), otherwise only one hard drive can be recognized
